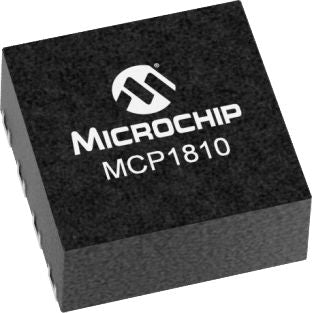

Microchip MCP1810T-30I/J8A, LDO Regulator, 150mA, 3 V 8-Pin, VDFN [MCP1810T-30I/J8A]; 146-8881
by Microchip
0₫
Mã kho: 1468881
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Dropout Voltage at Maximum Current | 380mV |
| Output Voltage | 3 V |
| Output Type | Fixed |
| Package Type | VDFN |
| Maximum Output Current | 150mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 5.5 V |
| Pin Count | 8 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 50nA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Enable | Yes |
| Load Regulation | ±3 %/V |
| Dimensions | 2 x 2 x 0.85mm |
| Length | 2mm |
| Line Regulation | ±4 %/V |
| Height | 0.85mm |
| Reference Voltage | ≤1.8V |
| Width | 2mm |
