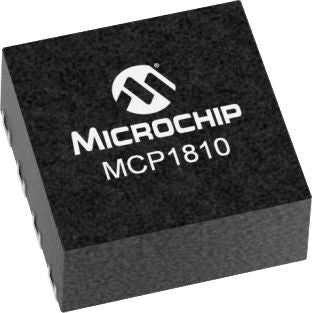

Microchip MCP1810T-30I/J8A, LDO Regulator, 150mA, 3 V 8-Pin, VDFN [MCP1810T-30I/J8A]; 146-3236
by Microchip
0₫
Mã kho: 1463236
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Dropout Voltage at Maximum Current | 380mV |
Output Voltage | 3 V |
Output Type | Fixed |
Package Type | VDFN |
Maximum Output Current | 150mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2.5 V |
Maximum Input Voltage | 5.5 V |
Pin Count | 8 |
Polarity | Positive |
Number of Outputs | 1 |
Quiescent Current | 50nA |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Dimensions | 2 x 2 x 0.85mm |
Load Regulation | ±3 %/V |
Reference Voltage | ≤1.8V |
Line Regulation | ±4 %/V |
Height | 0.85mm |
Length | 2mm |
Width | 2mm |
Enable | Yes |
