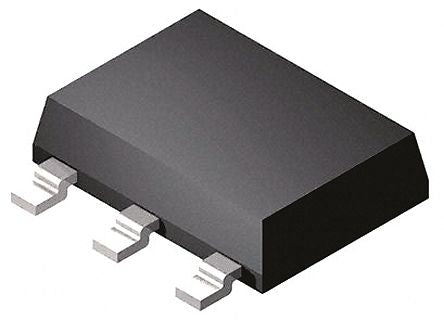

Microchip MCP1804T-5002I/DB, LDO Voltage Regulator, 150mA, 5 V, ±2% 3+Tab-Pin, SOT-223 [MCP1804T-5002I/DB]; 165-2190
by Microchip
0₫
Mã kho: 1652190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 5 V |
Output Type | Fixed |
Package Type | SOT-223 |
Maximum Output Current | 150mA |
Mounting Type | Surface Mount |
Minimum Input Voltage | 2 V |
Maximum Input Voltage | 28 V |
Pin Count | 3+Tab |
Polarity | Positive |
Number of Outputs | 1 |
Quiescent Current | 125µA |
Accuracy | ±2% |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Width | 3.7mm |
Dimensions | 6.7 x 3.7 x 1.7mm |
Load Regulation | 275 mV |
Height | 1.7mm |
Line Regulation | 0.3 %/V |
Length | 6.7mm |
