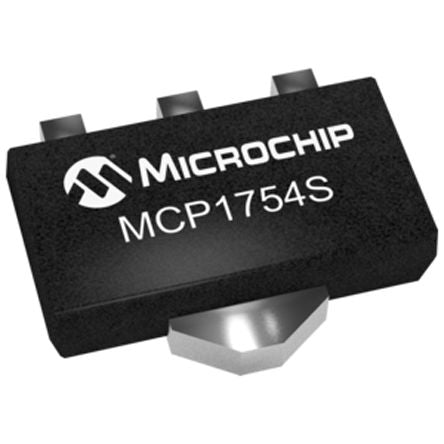

Microchip MCP1754ST-3302E/MB, LDO Voltage Regulator, 150mA, 3.3 V, ±0.4% 3-Pin, SOT-89 [MCP1754ST-3302E/MB]; 165-3577
by Microchip
0₫
Mã kho: 1653577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | SOT-89 |
| Maximum Output Current | 150mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 16 V |
| Pin Count | 3 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Quiescent Current | 0.056mA |
| Accuracy | ±0.4% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 1.6mm |
| Line Regulation | 0.05 %/V |
| Dimensions | 4.6 x 4.25 x 1.6mm |
| Load Regulation | 0 |
| Length | 4.6mm |
| Width | 4.25mm |
