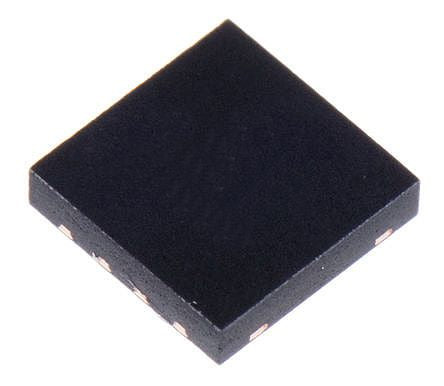

Microchip MCP1725-ADJE/MC, LDO Regulator, 500mA Adjustable, 0.8 → 5 V 8-Pin, DFN [MCP1725-ADJE/MC]; 145-9004
by Microchip
0₫
Mã kho: 1459004
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 0.8 → 5 V |
| Output Type | Adjustable |
| Package Type | DFN |
| Maximum Output Current | 500mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 6 V |
| Pin Count | 8 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Quiescent Current | 220µA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.95mm |
| Reference Voltage | 0.41V |
| Line Regulation | 0.16 %/V |
| Length | 2mm |
| Load Regulation | 0.01 |
| Dimensions | 2 x 3 x 0.95mm |
| Enable | Yes |
| Width | 3mm |
