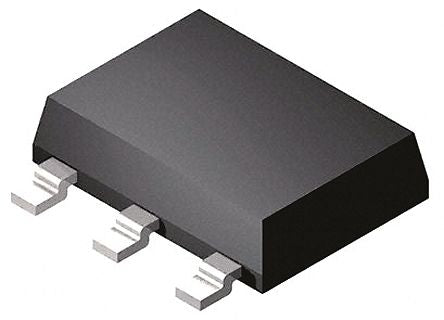

Microchip MCP1703T-3302E/DB, LDO Regulator, 200mA, 3.3 V, 2.7 → 16 Vin 3+Tab-Pin, SOT-223 [MCP1703T-3302E/DB]; 823-0760
by Microchip
0₫
Mã kho: 8230760
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Package Type | SOT-223 |
| Maximum Output Current | 200mA |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 16 V |
| Pin Count | 3+Tab |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 5µA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Power Rating | 1.35W |
| Width | 3.7mm |
| Load Regulation | 0.025 |
| Length | 6.7mm |
| Line Regulation | 0.3 %/V |
| Height | 1.7mm |
| Dimensions | 6.7 x 3.7 x 1.7mm |
