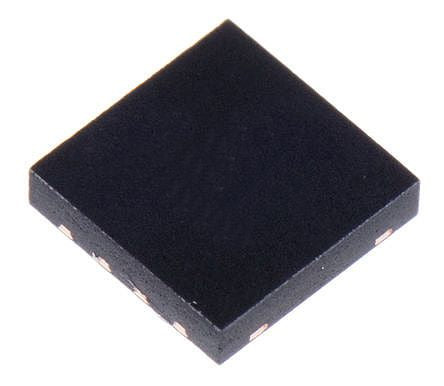

Microchip, MCP1603T-330I/MC DC-DC Converter 500mA, 3.3 V 8-Pin, DFN [MCP1603T-330I/MC]; 819-5522
by Microchip
0₫
Mã kho: 8195522
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Maximum Output Voltage | 3.3 V |
| Regulator Function | Buck Regulator |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.3 %/V |
| Load Regulation | 0.0035 |
| Maximum Switching Frequency | 2.8 MHz |
| Dimensions | 3 x 2 x 0.95mm |
| Length | 3mm |
| Minimum Operating Temperature | -40 °C |
| Width | 2mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95mm |
