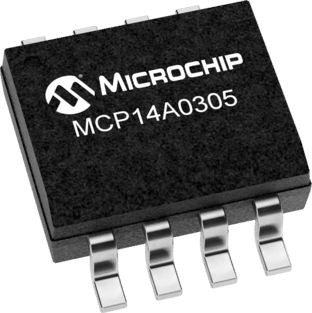

Microchip Technology MCP14A0305-E/SN Dual Low Side MOSFET Power Driver, 3A 8-Pin, SOIC [MCP14A0305-E/SN]; 176-5503
by Microchip
0₫
Mã kho: 1765503
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 3A |
| Number of Outputs | 2 |
| Polarity | Inverting, Non-Inverting |
| Package Type | SOIC |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS |
| Width | 3.9mm |
| Height | 1.25mm |
| Minimum Operating Temperature | -40 °C |
| Fall Time | 19ns |
| Time Delay | 31ns |
| Rise Time | 19ns |
| Dimensions | 4.9 x 3.9 x 1.25mm |
| Length | 4.9mm |
| Maximum Operating Temperature | +125 °C |
