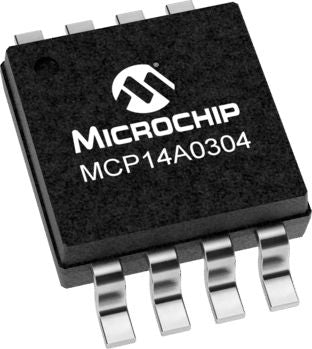

Microchip Technology MCP14A0304T-E/MS Dual Low Side MOSFET Power Driver, 3A 8-Pin, MSOP [MCP14A0304T-E/MS]; 176-5531
by Microchip
0₫
Mã kho: 1765531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 3A |
| Number of Outputs | 2 |
| Polarity | Non-Inverting |
| Package Type | MSOP |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS |
| Rise Time | 19ns |
| Height | 0.95mm |
| Fall Time | 19ns |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
| Time Delay | 31ns |
| Maximum Operating Temperature | +125 °C |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
