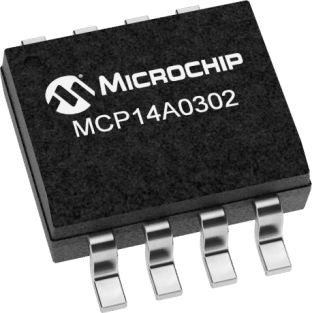

Microchip Technology, MCP14A0302-E/SN [MCP14A0302-E/SN]; 188-0237
by Microchip
0₫
Mã kho: 1880237
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | -4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | High Speed |
| Mounting Type | Surface Mount |
| Peak Output Current | 3 (Typ.)A |
| Number of Outputs | 2 |
| Polarity | Non-Inverting |
| Package Type | SOIC |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS |
| Rise Time | 20ns |
| Height | 1.5mm |
| Length | 4.9mm |
| Maximum Operating Temperature | +125 °C |
| Width | 3.9mm |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Fall Time | 18ns |
| Time Delay | 27ns |
| Minimum Operating Temperature | -40 °C |
