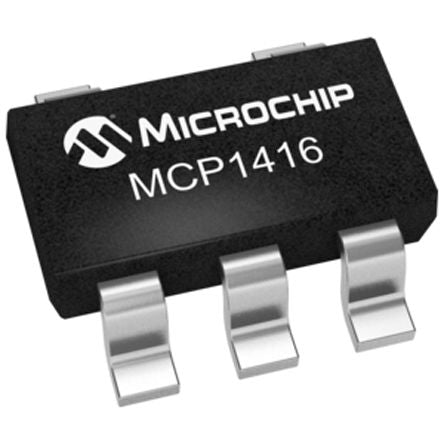

Microchip MCP1416T-E/OT Low Side MOSFET Power Driver, 1.5A, 4.5 → 18 V 5-Pin, SOT-23 [MCP1416T-E/OT]; 668-4216
by Microchip
0₫
Mã kho: 6684216
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 1 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 1.5A |
| Number of Outputs | 1 |
| Polarity | Non-Inverting |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Input Logic Compatibility | CMOS, TTL |
| Maximum Operating Temperature | +125 °C |
| Length | 3.1mm |
| Height | 1.3mm |
| Width | 1.8mm |
| Dimensions | 3.1 x 1.8 x 1.3mm |
| Minimum Operating Temperature | -40 °C |
