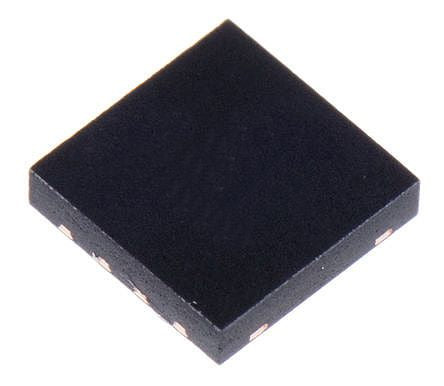

Microchip MCP1404-E/MF Dual Low Side MOSFET Power Driver, 4.5A 8-Pin, DFN [MCP1404-E/MF]; 146-0238
by Microchip
0₫
Mã kho: 1460238
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Drivers | 2 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 18 V |
| Topology | Low Side |
| Mounting Type | Surface Mount |
| Peak Output Current | 4.5A |
| Number of Outputs | 2 |
| Polarity | Non-Inverting |
| Package Type | DFN |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS, TTL |
| Length | 4.92mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 4.92 x 5.99 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Width | 5.99mm |
