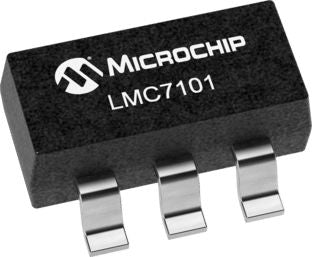

LMC7101BYM5-TR Microchip Technology, Low Power, Op Amp, 5-Pin SOT-23 [LMC7101BYM5-TR]; 177-2830
by Microchip
0₫
Mã kho: 1772830
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Gain Bandwidth Product | 500kHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.4V/µs |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 1.75mm |
| Offset Voltage | 9mV |
| Typical Voltage Gain | 340 V/mV |
| Maximum Input Voltage | 12 V |
| Minimum Input Voltage | 2.7 V |
| Typical Input Voltage Noise Density | 37nV/√Hz |
| Input Voltage Range | 2.7 → 12 V |
| Length | 3.02mm |
| Input Offset Current | 32pA |
| Height | 1.3mm |
| Dimensions | 3.02 x 1.75 x 1.3mm |
