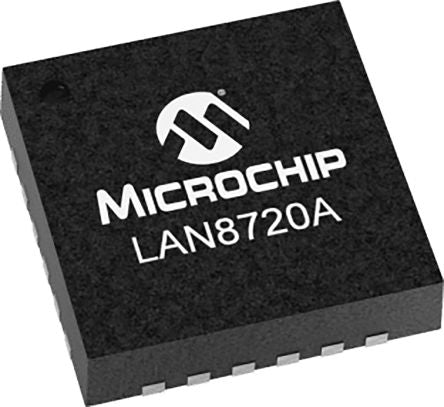

Microchip Technology LAN8720A-CP Ethernet Transceiver, 100Mbit/s 3.3 V, 24-Pin QFN [LAN8720A-CP]; 177-3552
by Microchip
0₫
Mã kho: 1773552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Supported | IEEE 802.3, IEEE 802.3u, ISO 802-3, 10BASE-T, 100BASE-TX |
| Number of Transceivers | 1 |
| Data Rate | 100Mbit/s |
| Maximum Supply Current | 28 mA |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 24 |
| Typical Operating Supply Voltage | 3.3 V |
| Dimensions | 4.1 x 4.1 x 0.95mm |
| Height | 0.95mm |
| Length | 4.1mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | 0 °C |
| Width | 4.1mm |
