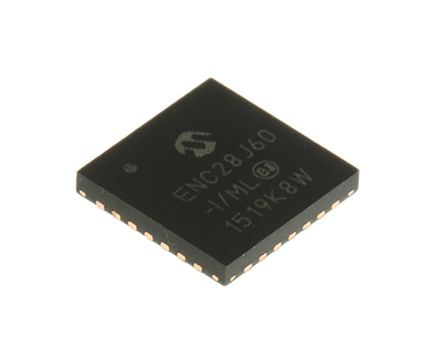

Microchip ENC28J60-I/ML, Ethernet Controller, 10MBps MII, MIIM, Serial-SPI, 3.3 V, 28-Pin QFN [ENC28J60-I/ML]; 666-5710
by Microchip
0₫
Mã kho: 6665710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Physical Network Type | 10BaseT |
Host Interface | Serial-SPI |
Network Interface | MII, MIIM |
Communication Mode | Full Duplex, Half Duplex |
Data Rate | 10Mbps |
Standard Supported | IEEE 802.3 |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 28 |
DMA Support | Yes |
Typical Operating Supply Voltage | 3.3 V |
Dimensions | 6 x 6 x 0.88mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Length | 6mm |
Height | 0.88mm |
Width | 6mm |
