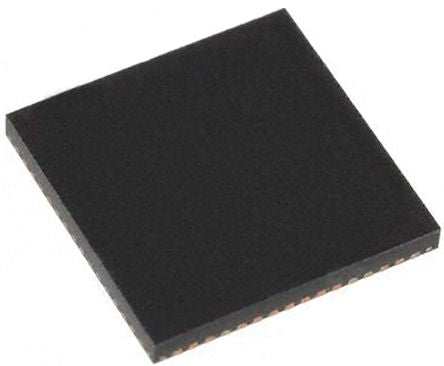

dsPIC33EV256GM106-I/MR Microchip, 16bit DSP 70MIPS 256 kB Flash 64-Pin QFN [DSPIC33EV256GM106-I/MR]; 178-4893
by Microchip
0₫
Mã kho: 1784893
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 70MIPS |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 16 kB |
| Instruction Set Architecture | Code Efficient |
| Program Memory Size | 256 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Number of UART Channels | 2 |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Number of I2C Channels | 1 |
| PWM Channels | 6 |
| Minimum Operating Temperature | -40 °C |
| Width | 9mm |
| ADCs | 1 (36 x 10/12 bit) |
| Number of PWM Units | 1 |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Height | 0.95mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10 bit, 12 bit |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| Dimensions | 9 x 9 x 0.95mm |
| Number of SPI Channels | 2 |
| ADC Channels | 36 |
| Number of CAN Channels | 1 |
| Length | 9mm |
| Number of Timers | 7 |
