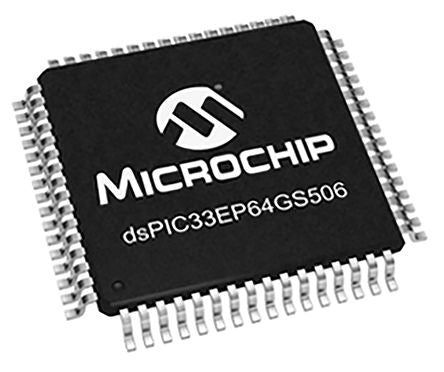

DSPIC33EP64GS506-I/PT Microchip, 16bit DSP 1MHz 64 kB EEPROM, SRAM 64-Pin TQFP [DSPIC33EP64GS506-I/PT]; 893-8329
by Microchip
0₫
Mã kho: 8938329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency | 1MHz |
Device Million Instructions per Second | 70MIPS |
Data Bus Width | 16bit |
RAM Size | 8 kB |
Instruction Set Architecture | Code Efficient, MCU, Modified Harvard |
Program Memory Size | 64 kB |
Program Memory Type | EEPROM, SRAM |
Numeric and Arithmetic Format | MAC |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 64 |
Typical Operating Supply Voltage | 3 → 3.6 V |
Number of UART Channels | 2 |
Number of PCI Channels | 1 |
PWM Channels | 2 |
ADC Resolution | 12bit |
Timer Resolution | 16bit |
Timers | 5 x 16 bit |
Minimum Operating Temperature | -40 °C |
Number of SPI Channels | 2 |
Dimensions | 10 x 10 x 1.05mm |
Length | 10mm |
Pulse Width Modulation | 5 x 2 |
Maximum Operating Temperature | +85 °C |
Height | 1.05mm |
Number of I2C Channels | 2 |
Number of ADC Units | 5, 22 |
Number of LIN Channels | 2 |
Number of PWM Units | 5 |
ADCs | 5 x 12 bit, 22 x 12 bit |
Width | 10mm |
Number of Timers | 5 |
USB Channels | 1 x Device |
