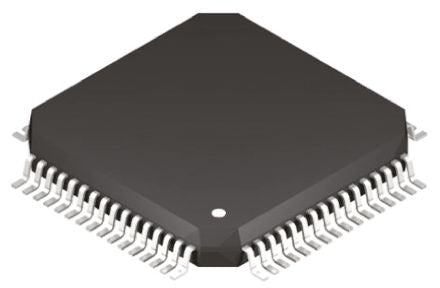

DSPIC33EP512MC506-I/PT Microchip, 16bit DSP 60MHz 512 kB Flash 64-Pin TQFP [DSPIC33EP512MC506-I/PT]; 178-5214
by Microchip
0₫
Mã kho: 1785214
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency | 60MHz |
Data Bus Width | 16bit |
RAM Size | 48 kB |
Instruction Set Architecture | Harvard |
Program Memory Size | 512 kB |
Program Memory Type | Flash |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 64 |
Typical Operating Supply Voltage | 3 → 3.6 V |
Number of UART Channels | 2 |
Number of ADC Units | 2 |
PWM Resolution | 16bit |
Number of LIN Channels | 1 |
Number of Timers | 1 |
USB Channels | 1 |
Number of CAN Channels | 1 |
ADC Channels | 16 |
Number of SPI Channels | 2 |
Dimensions | 10 x 10 x 1.05mm |
Timers | 5 x 16 bit, 5 x 32 bit |
Number of I2C Channels | 2 |
Number of PWM Units | 1 |
ADCs | 16-ch x 10-bit, 16-ch x 12-bit |
Width | 10mm |
Height | 1.05mm |
Timer Resolution | 16 bit, 32 bit |
Maximum Operating Temperature | +85 °C |
ADC Resolution | 10 bit, 12 bit |
PWM Channels | 6 |
Length | 10mm |
Pulse Width Modulation | 1(6 x 16 bit) |
Minimum Operating Temperature | -40 °C |
