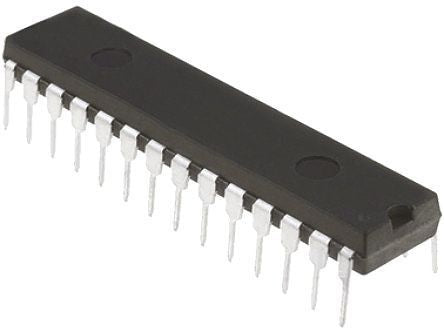

16-Bit MCU+DSC 512K Flash Op-Amp SPDIP28 [DSPIC33EP512GP502-I/SP]; 178-4847
by Microchip
0₫
Mã kho: 1784847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 5.5MHz |
| Data Bus Width | 16bit |
| RAM Size | 48 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 512 kB |
| Program Memory Type | Flash |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Length | 35.56mm |
| Dimensions | 35.36 x 7.49 x 3.81mm |
| Number of SPI Channels | 2 |
| ADC Channels | 12 |
| Number of CAN Channels | 1 |
| USB Channels | 1 |
| Number of Timers | 10 |
| ADCs | 6-ch x 10 bit, 6-ch x 12 bit |
| Width | 7.49mm |
| Minimum Operating Temperature | -40 °C |
| Number of I2C Channels | 2 |
| Timers | 5 x 16 bit, 5 x 32 bit |
| Height | 3.81mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10 bit, 12 bit |
| Number of ADC Units | 1 |
