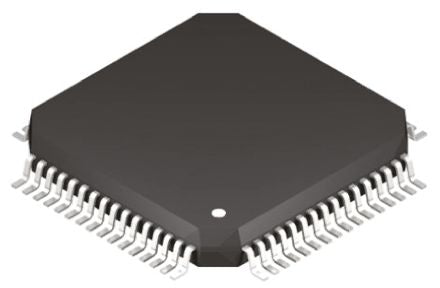

DSPIC33EP512GM306-I/PT Microchip, 16bit DSP 60MHz 512 kB Flash 64-Pin TQFP [DSPIC33EP512GM306-I/PT]; 178-5210
by Microchip
0₫
Mã kho: 1785210
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 60MHz |
| Data Bus Width | 16bit |
| RAM Size | 48 kB |
| Instruction Set Architecture | Harvard |
| Program Memory Size | 512 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 4 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 1.05mm |
| Timers | 4 x 32 bit, 9 x 16 bit |
| Number of I2C Channels | 2 |
| PWM Channels | 12 |
| Minimum Operating Temperature | -40 °C |
| Width | 10mm |
| ADCs | 30-ch x 10-bit, 30-ch x 12-bit |
| Number of PWM Units | 1 |
| Number of ADC Units | 2 |
| PWM Resolution | 16bit |
| Number of LIN Channels | 1 |
| Number of Timers | 1 |
| USB Channels | 1 |
| ADC Channels | 30 |
| Number of SPI Channels | 3 |
| Dimensions | 10 x 10 x 1.05mm |
| Length | 10mm |
| Pulse Width Modulation | 1(12 x 16 bit) |
| ADC Resolution | 10 bit, 12 bit |
| Maximum Operating Temperature | +85 °C |
