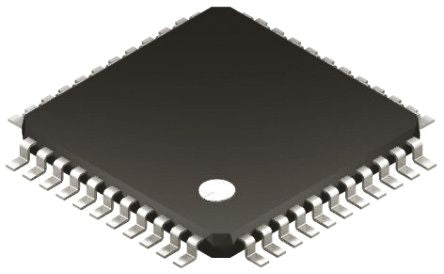

DSPIC33EP32MC204-I/PT Microchip, 16bit DSP 70MHz 32 kB Flash 44-Pin TQFP [DSPIC33EP32MC204-I/PT]; 823-7819
by Microchip
0₫
Mã kho: 8237819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 70MHz |
| Data Bus Width | 16bit |
| RAM Size | 4 kB |
| Instruction Set Architecture | Code Efficient |
| Program Memory Size | 32 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 44 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Number of I2C Channels | 2 |
| Height | 1.05mm |
| PWM Resolution | 16bit |
| PWM Channels | 6 |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 4(6 x 16 bit) |
| Length | 10mm |
| Dimensions | 10 x 10 x 1.05mm |
| Number of SPI Channels | 2 |
| Width | 10mm |
| ADC Channels | 9 |
| Number of Timers | 5 |
| Number of ADC Units | 1 |
| ADC Resolution | 10 bit, 12 bit |
| Timer Resolution | 16 bit, 32 bit |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Minimum Operating Temperature | -40 °C |
| Number of PWM Units | 4 |
| ADCs | 1(9 x 10/12 bit) |
