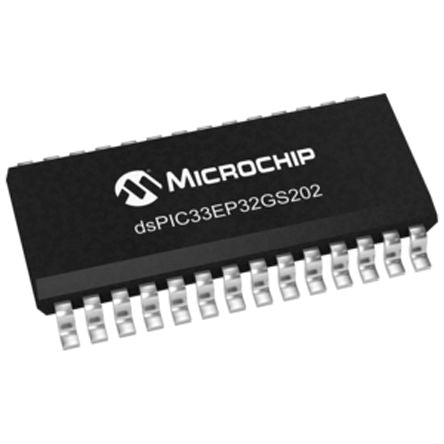

DSPIC33EP32GS202-I/SO Microchip, 16bit DSP 120MHz 32 kB Flash 28-Pin SOIC [DSPIC33EP32GS202-I/SO]; 178-4875
by Microchip
0₫
Mã kho: 1784875
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 120MHz |
| Data Bus Width | 16bit |
| RAM Size | 2 kB |
| Instruction Set Architecture | Harvard |
| Program Memory Size | 32 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | Fixed Point, Floating Point, MAC |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 1 |
| Length | 17.9mm |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +85 °C |
| Timer Resolution | 16 bit, 32 bit |
| Height | 2.35mm |
| Timers | 1 x 16 bit, 2 x 32 bit |
| Number of I2C Channels | 1 |
| Number of ADC Units | 1 |
| Number of PWM Units | 3 x 2 |
| ADCs | 1 (12 x 12 bit) |
| Width | 10.3mm |
| Dimensions | 17.9 x 10.3 x 2.35mm |
| Number of SPI Channels | 1 |
| ADC Channels | 12 |
| Minimum Operating Temperature | -40 °C |
| Number of Timers | 3 |
