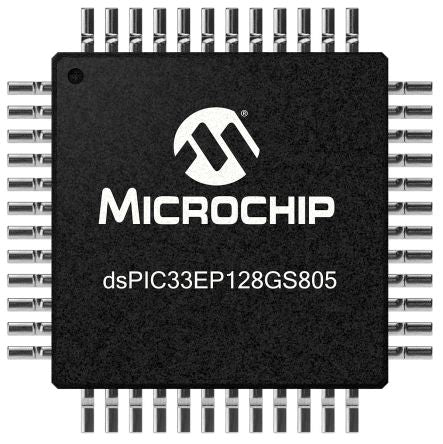

![Microchip dsPIC33EP128GS805-I/PT 1345587](http://nguyenxuong.com/cdn/shop/products/R1345587-01_443x444.jpg?v=1594194827)
dsPIC33EP128GS805-I/PT Microchip dsPIC33EP, 16bit DSP 60MHz 128 kB Flash 48-Pin TQFP [dsPIC33EP128GS805-I/PT]; 134-5587
by Microchip
0₫
Mã kho: 1345587
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Frequency | 60MHz |
Series | dsPIC33EP |
Device Million Instructions per Second | 70MIPS |
Data Bus Width | 16bit |
RAM Size | 8 kB |
Instruction Set Architecture | DSP |
Program Memory Size | 128 kB |
Program Memory Type | Flash |
Numeric and Arithmetic Format | MAC |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 48 |
Typical Operating Supply Voltage | 3 → 3.6 V |
Number of UART Channels | 2 |
Timer Resolution | 16 bit, 32 bit |
Pulse Width Modulation | 1(8 x 16 bit) |
ADC Resolution | 12bit |
Number of CAN Channels | 2 |
Number of Timers | 2 |
Minimum Operating Temperature | -40 °C |
Automotive Standard | AEC-Q100 |
Timers | 1(2 x 32 bit), 1(5 x 16 bit) |
Length | 7mm |
Dimensions | 7 x 7 x 1.05mm |
Number of SPI Channels | 3 |
PWM Resolution | 16bit |
ADC Channels | 5 (S & H Circuit), 17 (Analogue) |
PWM Channels | 8 |
Number of I2C Channels | 2 |
Height | 1.05mm |
Maximum Operating Temperature | +85 °C |
Number of PWM Units | 1 |
Width | 7mm |
ADCs | 1(17 x 12 bit (Analogue)), 1(5 x 12 bit (S & H Circuit)) |
Number of ADC Units | 2 |
