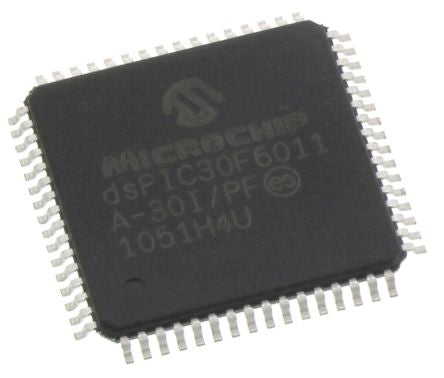

dsPIC30F6011A-30I/PF Microchip dsPIC30F, 16bit DSP 30MIPS 2.048 kB, 132 kB Flash 64-Pin TQFP [dsPIC30F6011A-30I/PF]; 666-8315
by Microchip
0₫
Mã kho: 6668315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 30MIPS |
| Series | dsPIC30F |
| Device Million Instructions per Second | 30MIPS |
| Data Bus Width | 16bit |
| RAM Size | 6.144 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 2.048 kB, 132 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 2.5 → 5.5 V |
| Number of UART Channels | 2 |
| Number of PWM Units | 8 |
| Number of ADC Units | 1 |
| Number of SPI Channels | 2 |
| Dimensions | 14 x 14 x 1.05mm |
| Length | 14mm |
| Pulse Width Modulation | 8(16 bit) |
| Maximum Operating Temperature | +85 °C |
| Number of CAN Channels | 2 |
| Height | 1.05mm |
| Number of I2C Channels | 1 |
| PWM Resolution | 16bit |
| Width | 14mm |
| ADCs | 16 x 12 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Channels | 16 |
| Number of Timers | 5 |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Timers | 5 x 16 bit |
