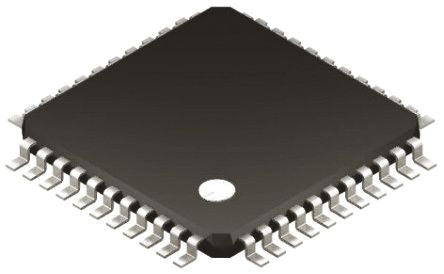

Microchip DSPIC30F4013-20E/PT, 16bit PIC Microcontroller, 25MHz, 48 kB Flash, 44-Pin TQFP [DSPIC30F4013-20E/PT]; 819-5349
by Microchip
0₫
Mã kho: 8195349
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | DsPIC30F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 48 kB |
| Maximum Frequency | 25MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 4 |
| ADC Channels | 13 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.5 → 5.5 V |
| Number of Timers | 5 |
| Number of I2C Channels | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 1 |
| Number of ADC Units | 1 |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 4 x 16 bit |
| Dimensions | 10 x 10 x 1.2mm |
| Timers | 2 x 32 bit, 5 x 16 bit |
| Width | 10mm |
| Height | 1.2mm |
| Timer Resolution | 16 bit, 32 bit |
| ADCs | 1 (13 x 12 bit) |
| Maximum Operating Temperature | +125 °C |
| Length | 10mm |
