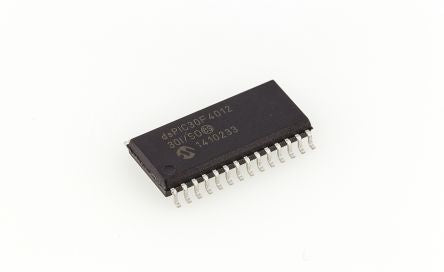

DSPIC30F4012-30I/SO Microchip dsPIC30F, 16bit DSP 30MIPS 1.024 kB, 48 kB Flash 28-Pin SOIC [DSPIC30F4012-30I/SO]; 889-5112
by Microchip
0₫
Mã kho: 8895112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 30MIPS |
| Series | dsPIC30F |
| Device Million Instructions per Second | 30MIPS |
| Data Bus Width | 16bit |
| RAM Size | 2.048 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 1.024 kB, 48 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 2.5 → 5.5 V |
| Number of UART Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Timers | 5 x 16 bit |
| Timer Resolution | 16bit |
| ADC Resolution | 10bit |
| ADC Channels | 6 |
| Height | 2.35mm |
| Number of I2C Channels | 1 |
| PWM Channels | 6 |
| Number of CAN Channels | 1 |
| PWM Resolution | 16bit |
| Number of SPI Channels | 1 |
| Dimensions | 17.9 x 7.5 x 2.35mm |
| Length | 17.9mm |
| Pulse Width Modulation | 1(6 Channel) (Motor Control), 2(16 bit) |
| Maximum Operating Temperature | +85 °C |
| ADCs | 6 x 10 bit |
| Width | 7.5mm |
| Number of Timers | 5 |
| Number of ADC Units | 1 |
| Number of PWM Units | 3 |
