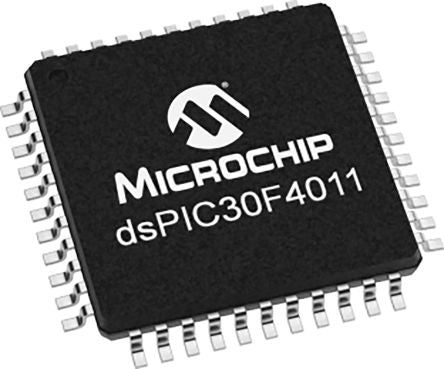

DSPIC30F4011-20I/PT Microchip DSPIC30F4011, 16bit Digital Signal Processor DSP 120MHz 48 kB Flash 44-Pin TQFP [DSPIC30F4011-20I/PT]; 177-3508
by Microchip
0₫
Mã kho: 1773508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 120MHz |
| Series | DSPIC30F4011 |
| Device Million Instructions per Second | 30MIPS |
| Data Bus Width | 16bit |
| RAM Size | 2 kB |
| Instruction Set Architecture | Harvard |
| Program Memory Size | 48 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | ALU |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 44 |
| Number of UART Channels | 2 |
| Width | 10mm |
| Minimum Operating Temperature | -40 °C |
| Length | 10mm |
| Dimensions | 10 x 10 x 1.05mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10bit |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| PWM Channels | 6 |
| Number of CAN Channels | 1 |
| ADC Channels | 9 |
| Height | 1.05mm |
| Timers | 2 x 32-bit, 5 x 16-bit |
| Number of I2C Channels | 1 |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Number of PWM Units | 1 |
| ADCs | 1 (9 x 10 bit) |
| Number of SPI Channels | 1 |
| Number of Timers | 2 |
