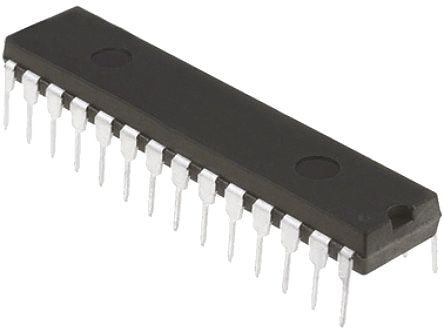

Microchip DSPIC30F1010-30I/SP, 16bit PIC Microcontroller, 15MHz, 6 kB Flash, 28-Pin SPDIP [DSPIC30F1010-30I/SP]; 819-5260
by Microchip
0₫
Mã kho: 8195260
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | DsPIC30F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 6 kB |
| Maximum Frequency | 15MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 6 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Number of ADC Units | 1 |
| Dimensions | 35.18 x 7.49 x 3.43mm |
| Instruction Set Architecture | RISC |
| Timers | 2 x 16 bit |
| Width | 7.49mm |
| PWM Channels | 4 |
| Height | 3.43mm |
| Timer Resolution | 16bit |
| ADCs | 1 (6 x 10 bit) |
| Length | 35.18mm |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10bit |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
