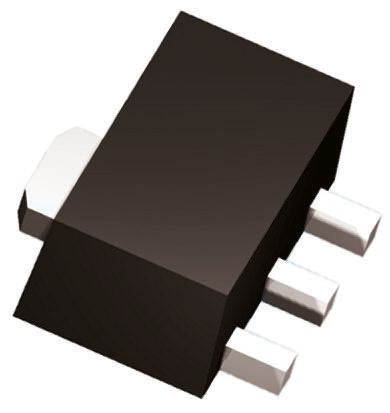

DN3535N8-G N-Channel MOSFET, 230 mA, 350 V Depletion, 4-Pin TO-243AA Microchip [DN3535N8-G]; 829-3354
by Microchip
0₫
Mã kho: 8293354
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 230 mA |
Maximum Drain Source Voltage | 350 V |
Package Type | TO-243AA |
Mounting Type | Surface Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 10 Ω |
Channel Mode | Depletion |
Maximum Gate Threshold Voltage | 3.5V |
Maximum Power Dissipation | 1.6 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Height | 1.6mm |
Minimum Operating Temperature | -55 °C |
Width | 2.6mm |
Maximum Operating Temperature | +150 °C |
Length | 4.6mm |
Transistor Material | Si |
