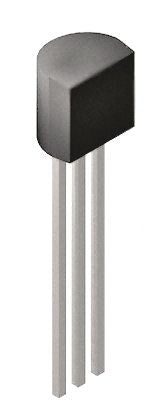

DN2530N3-G N-Channel MOSFET, 175 mA, 300 V Depletion, 3-Pin TO-92 Microchip [DN2530N3-G]; 829-3320
by Microchip
0₫
Mã kho: 8293320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 175 mA |
| Maximum Drain Source Voltage | 300 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 12 Ω |
| Channel Mode | Depletion |
| Maximum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 740 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.19mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 5.33mm |
| Length | 5.2mm |
