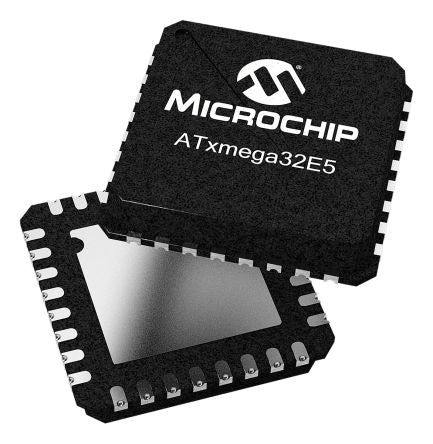

Microchip Technology ATXMEGA32E5-M4U, 8/16bit AVR Microcontroller, 32MHz, 32 + 4 kB Flash, 32-Pin UQFN [ATXMEGA32E5-M4U]; 133-1730
by Microchip
0₫
Mã kho: 1331730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AVR XMEGA |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8/16bit |
| Program Memory Size | 32 + 4 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Typical Operating Supply Voltage | 1.6 → 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Length | 4mm |
| ADCs | 1(16 x 12 bit) |
| Number of Timers | 1 |
| Timer Resolution | 16bit |
| Height | 0.6mm |
| PWM Channels | 16 |
| Width | 4mm |
| ADC Resolution | 12bit |
| Timers | 1(3 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 4 x 4 x 0.6mm |
| Pulse Width Modulation | 1(16 Channel) |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
