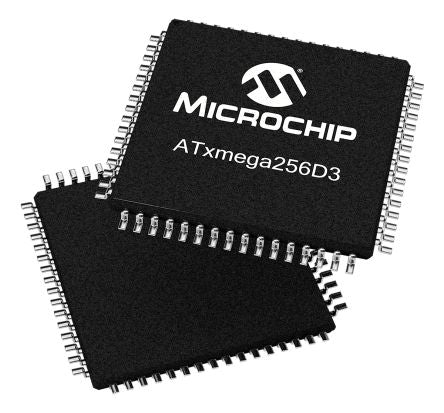

Microchip Technology ATXMEGA256D3-AU, 8/16bit AVR Microcontroller, 32MHz, 256 + 8 kB Flash, 64-Pin TQFP [ATXMEGA256D3-AU]; 133-1723
by Microchip
0₫
Mã kho: 1331723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AVR XMEGA |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | AVR |
Data Bus Width | 8/16bit |
Program Memory Size | 256 + 8 kB |
Maximum Frequency | 32MHz |
RAM Size | 16 kB |
Number of PWM Units | 1 |
ADC Channels | 16 |
Typical Operating Supply Voltage | 1.6 → 3.6 V |
Timers | 1(5 x 16 bit) |
Minimum Operating Temperature | -40 °C |
Dimensions | 14.1 x 14.1 x 1.05mm |
Pulse Width Modulation | 1(18 Channel) |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Maximum Operating Temperature | +85 °C |
Length | 14.1mm |
ADCs | 1(16 x 12 bit) |
Number of Timers | 1 |
PWM Channels | 18 |
Width | 14.1mm |
ADC Resolution | 12bit |
Timer Resolution | 16bit |
Height | 1.05mm |
