![Microchip ATXMEGA128D4-MH 1331704](http://nguyenxuong.com/cdn/shop/products/R1331704-01_434x444.jpg?v=1594348407)

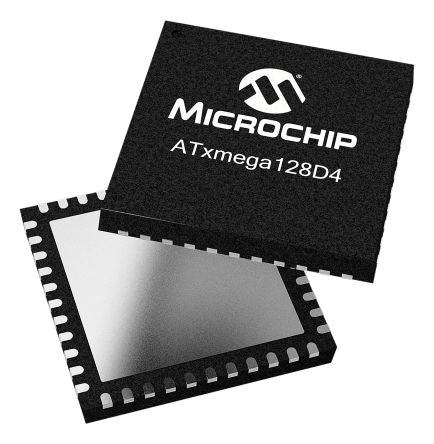

Microchip ATXMEGA128D4-MH, 8/16bit AVR Microcontroller, 32MHz, 128 + 8 kB Flash, 44-Pin VQFN [ATXMEGA128D4-MH]; 133-1704
by Microchip
0₫
Mã kho: 1331704
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AVR XMEGA |
Package Type | VQFN |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | AVR |
Data Bus Width | 8/16bit |
Program Memory Size | 128 + 8 kB |
Maximum Frequency | 32MHz |
RAM Size | 8 kB |
Number of PWM Units | 1 |
ADC Channels | 12 |
Typical Operating Supply Voltage | 1.6 → 3.6 V |
Minimum Operating Temperature | -40 °C |
Timers | 1(4 x 16 bit) |
ADC Resolution | 12bit |
Width | 7.1mm |
PWM Channels | 14 |
Height | 0.95mm |
Timer Resolution | 16bit |
Number of Timers | 1 |
ADCs | 1(12 x 12 bit) |
Dimensions | 7.1 x 7.1 x 0.95mm |
Maximum Operating Temperature | +85 °C |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
Pulse Width Modulation | 1(14 Channel) |
Length | 7.1mm |
