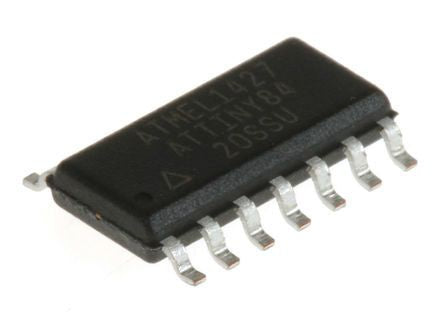

Microchip Technology ATTINY84-20SSU, 8bit AVR Microcontroller, 20MHz, 8 kB Flash, 14-Pin SOIC [ATTINY84-20SSU]; 133-1664
by Microchip
0₫
Mã kho: 1331664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AVR |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | AVR |
Data Bus Width | 8bit |
Program Memory Size | 8 kB |
Maximum Frequency | 20MHz |
RAM Size | 512 B |
Number of PWM Units | 1 |
ADC Channels | 8 |
Typical Operating Supply Voltage | 2.7 → 5.5 V |
Minimum Operating Temperature | -40 °C |
Dimensions | 8.74 x 3.99 x 1.5mm |
Pulse Width Modulation | 1(4 Channel) |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Maximum Operating Temperature | +85 °C |
Length | 8.74mm |
ADCs | 1(8 x 10 bit) |
Number of Timers | 2 |
Timer Resolution | 8 bit, 16 bit |
Height | 1.5mm |
PWM Channels | 4 |
Width | 3.99mm |
ADC Resolution | 10bit |
