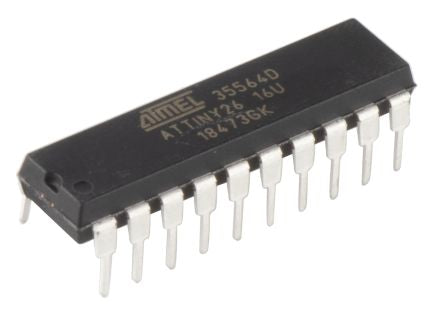

Microchip Technology ATTINY26-16PU, 8bit AVR Microcontroller, 16MHz, 2 kB Flash, 20-Pin PDIP [ATTINY26-16PU]; 133-1616
by Microchip
0₫
Mã kho: 1331616
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AVR |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 20 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 2 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 128 B |
| Number of PWM Units | 1 |
| ADC Channels | 11 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Timer Resolution | 8bit |
| Height | 4.95mm |
| ADC Resolution | 10bit |
| Width | 7.11mm |
| PWM Channels | 4 |
| Pulse Width Modulation | 1(4 Channel) |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 25.98 x 7.11 x 4.95mm |
| Minimum Operating Temperature | -40 °C |
| Length | 25.98mm |
| ADCs | 1(11 x 10 bit) |
| Number of Timers | 1 |
| Timers | 1 (2 x 8 bit) |
| Instruction Set Architecture | RISC |
