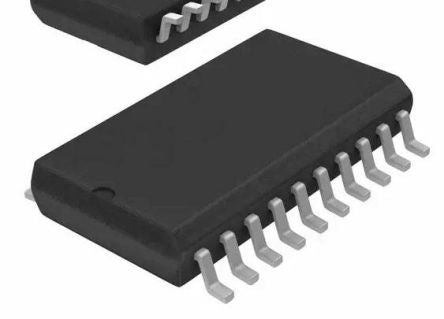

Microchip ATTINY1616-SNR, 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC [ATTINY1616-SNR]; 144-9534
by Microchip
0₫
Mã kho: 1449534
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATTINY16 |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2.048 kB |
| ADC Channels | 20 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Number of Timers | 1 (12-bit), 3 (16-bit) |
| Number of I2C Channels | 1 |
| Number of PCI Channels | 1 |
| Number of ADC Units | 2 |
| Dimensions | 13 x 7.6 x 2.35mm |
| Timers | 1 (1 x 12 bit), 1 (3 x 16 bit) |
| Number of USART Channels | 1 |
| Width | 7.6mm |
| Height | 2.35mm |
| Timer Resolution | 12 bit, 16 bit |
| ADCs | 2 (20 x 10 bit) |
| Length | 13mm |
| Maximum Operating Temperature | +105 °C |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
