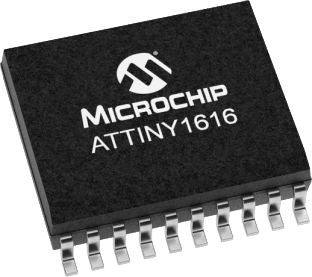

Microchip ATTINY1616-SFR, 8bit AVR Microcontroller, 20MHz, 16 kB Flash, 20-Pin SOIC [ATTINY1616-SFR]; 146-8887
by Microchip
0₫
Mã kho: 1468887
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATTINY |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 1 |
| ADC Channels | 20 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Pulse Width Modulation | 1 (6 x 16 bit) |
| Dimensions | 13 x 7.6 x 2.35mm |
| Timers | 1 (1 x 12 bit), 1 (1 x 16 bit), 1 (2 x 16 bit) |
| Number of USART Channels | 1 |
| Data Rate | 115kbit/s |
| Program Memory Type | Flash |
| Height | 2.35mm |
| Timer Resolution | 12 bit, 16 bit |
| ADCs | 1 (12 x 10 bit), 1 (8 x 10 bit) |
| Length | 13mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 2 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Width | 7.6mm |
| PWM Channels | 6 |
| PWM Resolution | 16bit |
