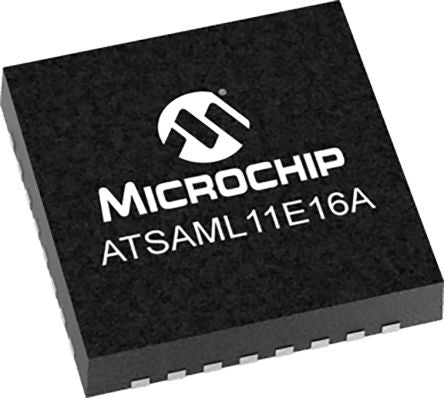

![Microchip ATSAML11E16A-MFKPH 1904958](http://nguyenxuong.com/cdn/shop/products/Y1904958-01_444x399.jpg?v=1594422123)
64KB Flash 16KBSRAM 32MHz ARM Cortex-M23 [ATSAML11E16A-MFKPH]; 190-4958
by Microchip
0₫
Mã kho: 1904958
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | SAM L11 |
Package Type | VQFN |
Mounting Type | Surface Mount |
Pin Count | 32 |
Data Bus Width | 32bit |
Program Memory Size | 64 kB |
Maximum Frequency | 32kHz |
RAM Size | 16 kB |
ADC Channels | 10 |
Number of SPI Channels | 3 |
Typical Operating Supply Voltage | 1.62 → 3.63 V |
Number of I2C Channels | 2 |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Maximum Operating Temperature | +125 °C |
Automotive Standard | AEC-Q100 |
Length | 5mm |
ADCs | 1 (10 x 12 bit) |
Number of Timers | 3 |
Width | 5mm |
Instruction Set Architecture | MCU |
Number of USART Channels | 1 |
Minimum Operating Temperature | -40 °C |
Dimensions | 5 x 5 x 0.95mm |
PWM Channels | 6 |
Number of LIN Channels | 1 |
Height | 0.95mm |
Timer Resolution | 8 bit, 16 bit, 32 bit |
ADC Resolution | 12bit |
