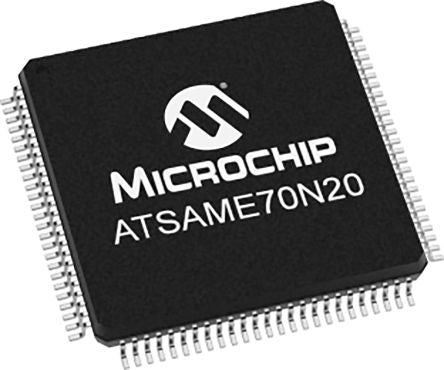

Microchip Technology ATSAME70N20A-AN, 32bit Microcontroller, 300MHz, 1.024 MB Flash, 100-Pin LQFP [ATSAME70N20A-AN]; 177-3805
by Microchip
0₫
Mã kho: 1773805
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAM |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 300MHz |
| RAM Size | 384 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 10 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Timers | 4 |
| Number of I2C Channels | 3 |
| Number of UART Channels | 5 |
| Pulse Width Modulation | 2 (4 x 16 bit) |
| Program Memory Type | Flash |
| Number of Ethernet Channels | 1 |
| ADCs | 1 (10 x 12 bit) |
| Length | 14mm |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | DSP |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Maximum Number of Ethernet Channels | 1 |
| Dimensions | 14 x 14 x 1.4mm |
| Number of USART Channels | 3 |
| Width | 14mm |
| PWM Channels | 4 |
| Timer Resolution | 16bit |
| Height | 1.4mm |
