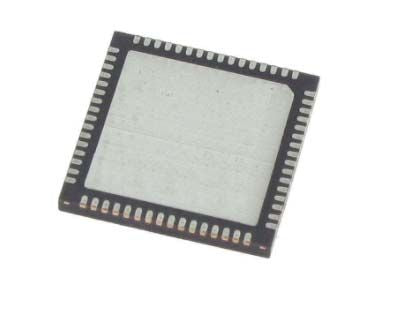

Microchip ATSAMD51J20A-MU, 32bit ARM Cortex M4 MCU, 120MHz, 1 MB Flash, 64-Pin VQFN [ATSAMD51J20A-MU]; 144-9612
by Microchip
0₫
Mã kho: 1449612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAMD51 |
| Package Type | VQFN |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of Timers | 1 (16-bit), 2 (24-bit) |
| Number of I2C Channels | 6 |
| Number of Ethernet Channels | 1 |
| Timer Resolution | 16 bit, 24 bit |
| Height | 1mm |
| PWM Channels | 13 |
| Width | 9mm |
| Data Rate | 2Mbit/s |
| Number of USART Channels | 2 |
| Timers | 1 (1 x 16 bit), 1 (2 x 24 bit) |
| Dimensions | 9 x 9 x 1mm |
| Pulse Width Modulation | 1 (13 Channel) |
| Program Memory Type | Flash |
| ADCs | 2 (24 x 12 bit) |
| Length | 9mm |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Maximum Number of Ethernet Channels | 1 |
| Instruction Set Architecture | Thumb-2 |
| Number of CAN Channels | 2 |
