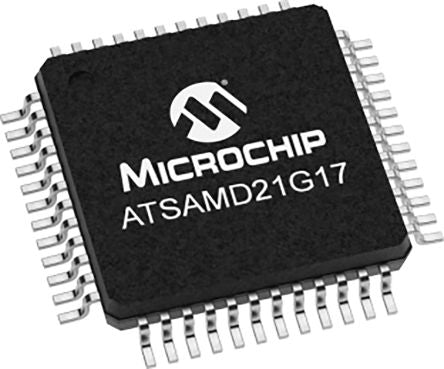

Microchip Technology ATSAMD21G17D-MU, 32bit Microcontroller, 48MHz, 128 kB Flash, 48-Pin QFN [ATSAMD21G17D-MU]; 176-5518
by Microchip
0₫
Mã kho: 1765518
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAM D21 |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| ADC Channels | 14 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 1.62 → 3.63 V |
| Automotive Standard | AEC-Q100 |
| Number of UART Channels | 1 |
| Length | 7mm |
| ADCs | 1 (14 x 12 bit) |
| Number of Timers | 8 |
| Number of I2C Channels | 6 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Dimensions | 7 x 7 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (3 x 24 bit), 1 (5 x 16 bit) |
| Number of USART Channels | 1 |
| ADC Resolution | 12bit |
| Width | 7mm |
| PWM Channels | 14 (Motor Control), 20 (PWM) |
| Timer Resolution | 16 bit, 24 bit |
| Height | 0.9mm |
