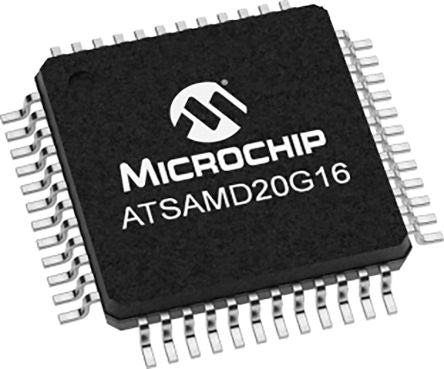

Microchip Technology ATSAMD20G16A-AU, 32bit Microcontroller, 48MHz, 64 kB Flash, 48-Pin TQFP [ATSAMD20G16A-AU]; 177-3743
by Microchip
0₫
Mã kho: 1773743
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAMD |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 1 |
| ADC Channels | 14 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of I2C Channels | 6 |
| Number of Timers | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 6 |
| Length | 7mm |
| ADCs | 1 (14 x 12 bit) |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | ARM |
| Pulse Width Modulation | 1 (16 Channel) |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (6 x 16 bit) |
| Number of USART Channels | 6 |
| ADC Resolution | 12bit |
| Width | 7mm |
| PWM Channels | 16 |
| Height | 1.05mm |
| Dimensions | 7 x 7 x 1.05mm |
| Timer Resolution | 16bit |
