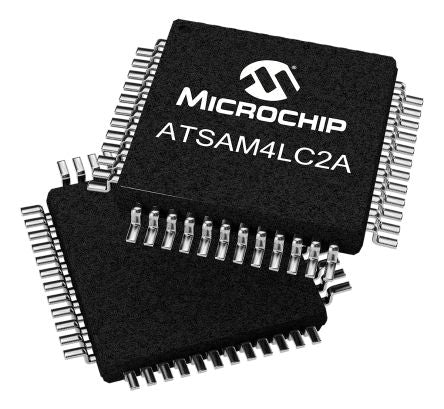

Microchip ATSAM4LC2AA-AU, 32bit ARM Cortex M4 MCU, 48MHz, 128 kB Flash, 64-Pin TQFP [ATSAM4LC2AA-AU]; 131-1194
by Microchip
0₫
Mã kho: 1311194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAM4L |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| ADC Channels | 3 |
| Typical Operating Supply Voltage | 1.8 V, 3 V |
| ADCs | 1(3 x 12 bit) |
| Number of Timers | 1 |
| Dimensions | 10 x 10 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Length | 10mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Timer Resolution | 16bit |
| ADC Resolution | 12bit |
| Width | 10mm |
| Height | 1.05mm |
| Timers | 1(3 x 16 bit) |
