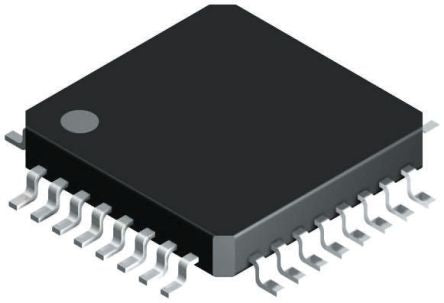

Microchip ATMEGA88P-20AU, 8bit AVR Microcontroller, 20MHz, 512 B, 8 kB Flash, 32-Pin TQFP [ATMEGA88P-20AU]; 696-3506
by Microchip
0₫
Mã kho: 6963506
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATmega |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB, 512 B |
| Maximum Frequency | 20MHz |
| RAM Size | 1 kB |
| Number of PWM Units | 3 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 8 bit, 16 bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.05mm |
| Number of USART Channels | 1 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Dimensions | 7.1 x 7.1 x 1.05mm |
| Program Memory Type | Flash |
| Length | 7.1mm |
| ADCs | 8 x 10 bit |
| PWM Channels | 6 |
| Width | 7.1mm |
| Pulse Width Modulation | 2(6 x 8 bit), 6 x 16 bit |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
