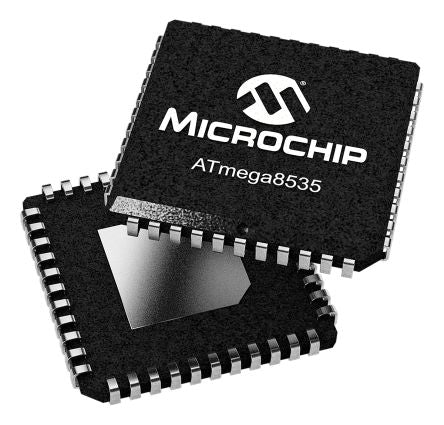

Microchip Technology ATMEGA8535L-8MU, 8bit AVR Microcontroller, 8MHz, 8 kB Flash, 44-Pin QFN/MLF [ATMEGA8535L-8MU]; 131-0350
by Microchip
0₫
Mã kho: 1310350
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATmega |
| Package Type | QFN/MLF |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 8MHz |
| RAM Size | 512 B |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| PWM Channels | 4 |
| Width | 7.1mm |
| ADC Resolution | 10bit |
| Timers | 1(1 x 16 bit), 1(2 x 8 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 7.1 x 7.1 x 0.95mm |
| Height | 0.95mm |
| Timer Resolution | 8 bit, 16 bit |
| Number of Timers | 2 |
| Length | 7.1mm |
| Maximum Operating Temperature | +85 °C |
| ADCs | 1(8 x 10 bit) |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 1(4 Channel) |
