| THÔNG SỐ KỸ THUẬT | |
|---|---|

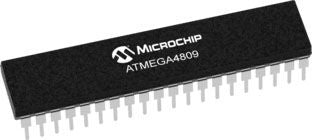

| Family Name | Atmega4809 |
| Package Type | PDIP |
| Mounting Type | Surface Mount |
| Pin Count | 40 |
| Device Core | AVR CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 48 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 6 kB |
| ADC Channels | 16 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of UART Channels | 4 |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Length | 53.09mm |
| ADCs | 1 (16 x 10 bit) |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +125 °C |
| Width | 14.73mm |
| Height | 4.83mm |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Timer Resolution | 16bit |
| Number of USART Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.09 x 0.58 x 0.19in |
