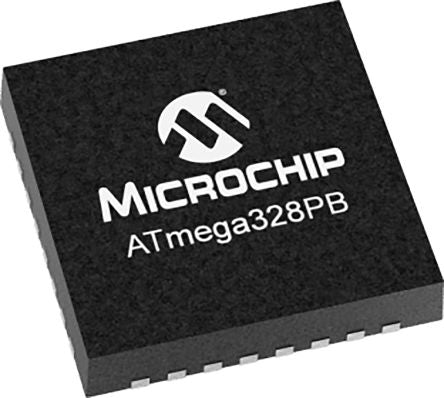

Microchip Technology ATMEGA328PB-MU, 8bit AVR Microcontroller, 20MHz, 32 kB Flash, 32-Pin VQFN [ATMEGA328PB-MU]; 177-3693
by Microchip
0₫
Mã kho: 1773693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATMEGA |
| Package Type | VQFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of I2C Channels | 2 |
| Pulse Width Modulation | 1 (10 Channel) |
| Number of Timers | 2 |
| Number of UART Channels | 3 |
| Program Memory Type | Flash |
| PWM Channels | 10 |
| Dimensions | 5.1 x 5.1 x 0.85mm |
| Timers | 1 (2 x 8 bit), 1 (3 x 16 bit) |
| Number of USART Channels | 3 |
| ADCs | 1 (8 x 10 bit) |
| Length | 5.1mm |
| Width | 5.1mm |
| Height | 0.85mm |
| Timer Resolution | 8 bit, 16 bit |
