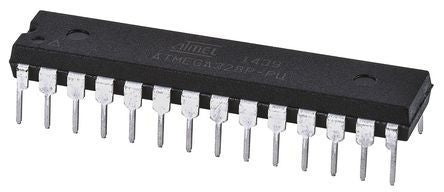

Microchip Technology ATMEGA328P-PU, 8bit AVR Microcontroller, 20MHz, 32 kB Flash, 28-Pin PDIP [ATMEGA328P-PU]; 131-0276
by Microchip
0₫
Mã kho: 1310276
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATmega |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 1 |
| ADC Channels | 6 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Width | 7.49mm |
| Dimensions | 34.79 x 7.49 x 4.06mm |
| Timer Resolution | 8 bit, 16 bit |
| Timers | 1(1 x 16 bit), 1(2 x 8 bit) |
| PWM Channels | 6 |
| Height | 4.06mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of ADC Units | 1 |
| Number of Timers | 2 |
| ADCs | 1(6 x 10 bit) |
| Pulse Width Modulation | 1(6 Channel) |
| Instruction Set Architecture | RISC |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Length | 34.79mm |
