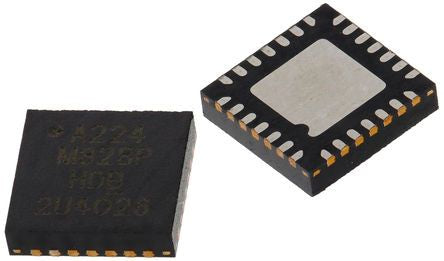

Microchip Technology ATMEGA328P-MMH, 8bit AVR Microcontroller, 20MHz, 32 kB Flash, 28-Pin QFN/MLF [ATMEGA328P-MMH]; 131-0272
by Microchip
0₫
Mã kho: 1310272
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | ATmega |
Package Type | QFN/MLF |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | AVR |
Data Bus Width | 8bit |
Program Memory Size | 32 kB |
Maximum Frequency | 20MHz |
RAM Size | 2 kB |
Number of PWM Units | 1 |
ADC Channels | 8 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
Dimensions | 4.05 x 4.05 x 0.95mm |
Maximum Operating Temperature | +85 °C |
Length | 4.05mm |
ADCs | 1(8 x 10 bit) |
Number of Timers | 2 |
Minimum Operating Temperature | -40 °C |
Pulse Width Modulation | 1(6 Channel) |
Program Memory Type | Flash |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
ADC Resolution | 10bit |
Width | 4.05mm |
PWM Channels | 6 |
Height | 0.95mm |
Timer Resolution | 8 bit, 16 bit |
Timers | 1(1 x 16 bit), 1(2 x 8 bit) |
