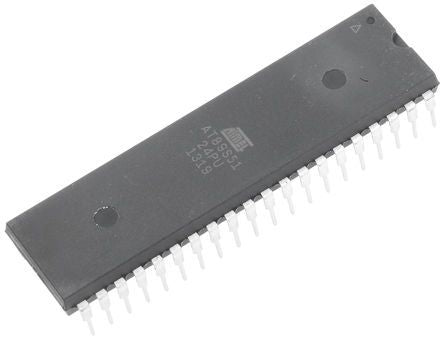

Microchip Technology AT89S51-24PU, 8bit 8051 Microcontroller, 24MHz, 4 kB Flash, 40-Pin PDIP [AT89S51-24PU]; 127-8151
by Microchip
0₫
Mã kho: 1278151
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 4 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 128 B |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Dimensions | 52.57 x 13.97 x 4.44mm |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Length | 52.57mm |
| Number of Timers | 1 |
| Timer Resolution | 16bit |
| Height | 4.44mm |
| Width | 13.97mm |
| Timers | 1(2 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
